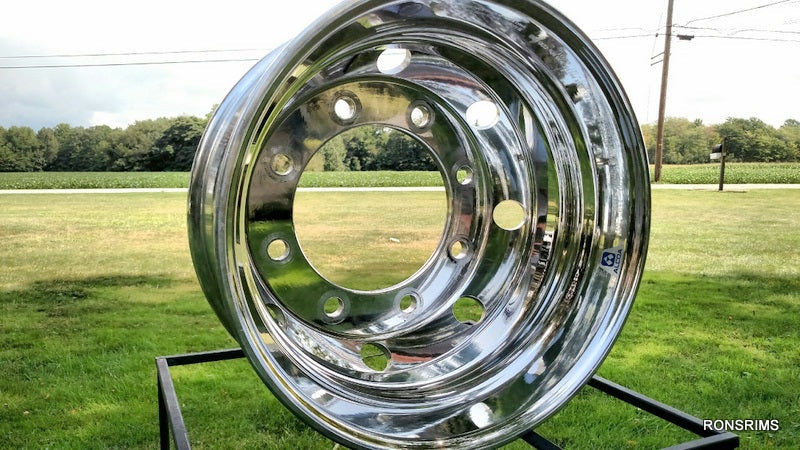

17.5 X 6.75" part # 40171xp DUALLY AXLE! 8 ON 275 MM BOLT PATTERN ( HUB PILOTED )
| Specifications | Measurement |
| Size | 17.5 x 6.75 |
| Bolt Circle | 10.827 |
| Hub Bore Diameter | 8.709 |
| Bolt Hole Diameter | 0.975 |
| Max. Wheel Load1 | 5510 |
| Wheel Weight | 30 |
| Outset2 | 5.55 |
| Inset | 4.72 |
| Max. Inflation § cold | 130 |
| Valve Stem | TR553C |
